display 10.1 inch · protection rating IP65 · MIL-STD-810G · weight 1.14 kg. All core specs with sources in the datasheet.
Get a quote in 2 minutesContact us for information on hire purchase and leasing!
The Fieldbook P101 offers a generous 10.1-inch display for maximum overview during complex tasks. Thanks to its IP65 certification, it is completely dust- and waterproof and drop-resistant up to 1.2 meters. Equipped with Windows, 4G LTE, and a powerful battery, it is the ideal work device for industry, logistics, and field operations.
Operating System
Processor and Memory
Display
Connectivity
Ports
Camera
Power Supply
Barcode Scanner
Dimensions & Weight
Security
Certificates
Accessories
Scope of Delivery
The Fieldbook P101 is the Windows counterpart to the N101 G2: same display size, same brightness, but an Intel processor and an SSD instead of eMMC. An RS-232 port optionally replaces the network socket.
The display measures 10.1 inch at a resolution of 1920 x 1200 (Full HD). The processor is listed as Intel® N5105 (2 GHz up to 2.90 GHz), memory and storage as Memory 8 GB DDR4 · SSD 128 GB M.2. Weight is 1.14 kg.
Every figure on this page comes from the Fieldbook P101 data sheet, where each line carries its source.
The protection rating is given as IP65 [1] – under IEC 60529 that means dust-tight and protected against water jets from any direction. 15 of the 45 devices we list carry this class.
The military standard is stated as MIL-STD-810G. Revision G dates from 2008 and is the predecessor of the revision H in common use today. MIL-STD-810 is not a certification but a set of test methods – which of them a manufacturer runs is its own decision.
The permitted operating temperature range is given as -20 °C to +60 °C.
Brightness is given as 700 nits. That puts the Fieldbook P101 at rank 30 of 44 devices for which a brightness figure is documented. The brightest reaches 1680 nits, the dimmest 400.
Office monitors run at 250 to 350 nits, and a display counts as sunlight readable from around 1000. This device sits between the two: outdoors shade helps, in a vehicle or a hall the figure is enough.
The manufacturer data sheet lists the following interfaces. We reproduce the list unchanged, because count and assignment can differ between build levels:

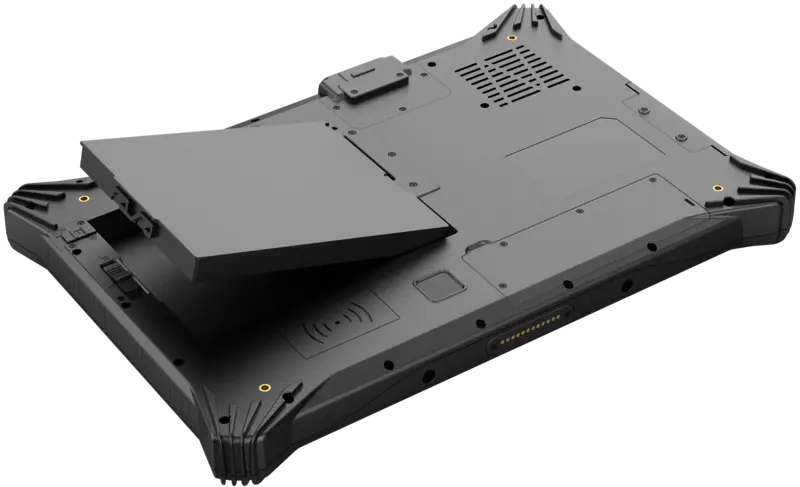

The data sheet states: 7.4 V / 5,000 mAh, hot-swappable.
A replaceable battery means the device can keep running without a shutdown, as long as the change happens within the buffer time. In shift operation that removes the charging break.
A configurator is available for the Fieldbook P101: Yes, interactive configurator on the product page (3 groups). It lets the build be put together before the enquiry rather than settled in conversation. The options offered there follow the choices in the manufacturer data sheet.
IP65 [1] – dust-tight and protected against water jets. Immersion is not covered.
-20 °C to +60 °C.
Yes – see the interface list quoted above.
All values from the respective data sheets:
| Model | Display | IP rating | MIL-STD | Brightness | Weight | Temperature |
|---|---|---|---|---|---|---|
| Fieldbook P101 | 10.1 inch | IP65 [1] | MIL-STD-810G | 700 nits | 1.14 kg | -20 °C to +60 °C |
| Fieldbook N101 | 10.1 inch | IP67 | – | 450 nits | 970 g | -20 °C to +60 °C |
| Fieldbook N101 G2 | 10.1 inch | IP65 | MIL-STD-810H | 700 nits | 1.140 kg | -20 °C to +60 °C |
| Fieldbook N80 G2 | 8 inch | IP67 | – | 500 nits | 600 g | -20 °C to +60 °C |
